DER REPAIRED UNITS

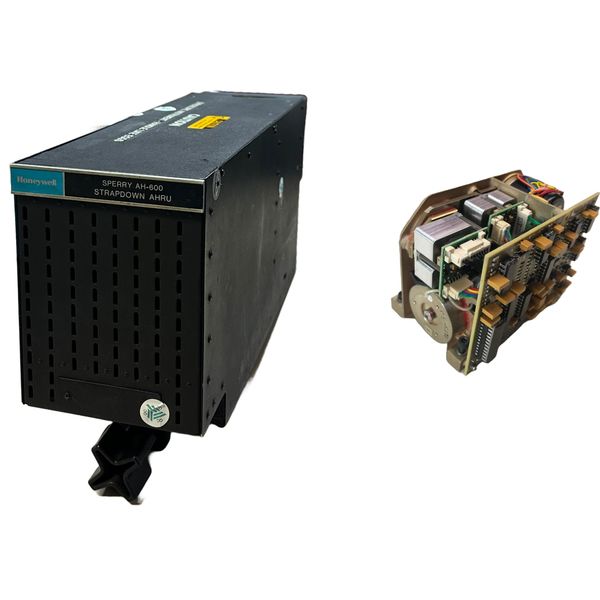

AAE has designed a solid-state replacement for the original mechanical rate gyros in Honeywell IMUs using a MEMS Rate Sensor.

The AAE IMU Replacement will operate properly in any AH-600 (P/N 7003360-Series) that has a Honeywell IMU (P/N 7004855-904) installed.  The performance of the AAE IMU Replacement meets or exceeds the performance characteristics of the original Honeywell IMU (Inertial Measurement Unit).  AAE has offered this IMU solution since 2020 and remains in good standing with all our customers and standards.

Part Numbers Supported: 7003360-932, -940, -941,-943,

                                                -946, -947, -948

Aircraft Supported:  ATR-42 / 72

Citation III / IIID / VII

Dash 8 -100 / 200 / 300

Hawker 800 / 800XP

Jetstream 41

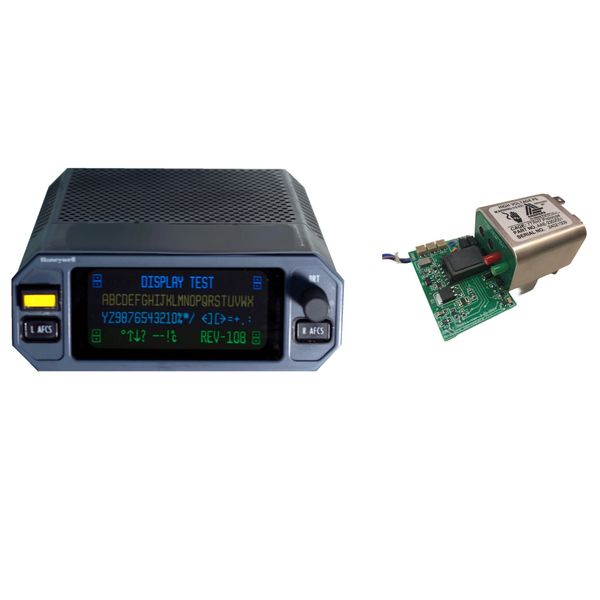

AAE offers a specialized repair for the Cathode Ray Tubes (CRT) and the High Voltage Power Supply (HVPS), which are the most often components to fail on this unit.   We have designed a modern replacement for the original High Voltage Power Supply in the Honeywell ID-800 Advisory Display. AAE is able to provide a repair solution that replaces the Original HVPS with a modern surface-mount design that offers higher reliability and avoids the obsolescence issues of the original OEM HVPS.

The AAE HVPS Replacement will operate properly in any ID-800 (P/N 7003652) that currently has a Honeywell HVPS (P/N 7004807-901) installed. The performance of the AAE HVPS Replacement meets or exceeds the performance characteristics of the original Honeywell HVPS (High Voltage Power Supply).

           Part Numbers Supported: 7003652-602, -611, -631

Aircraft Supported:  ATR-42 / 72

BAE-125

Citation III

CL-601

Dash 8 -100 /200 / 300

Falcon 900 / 900B

Hawker 400 / 800 / 800XP

Jetstream 41

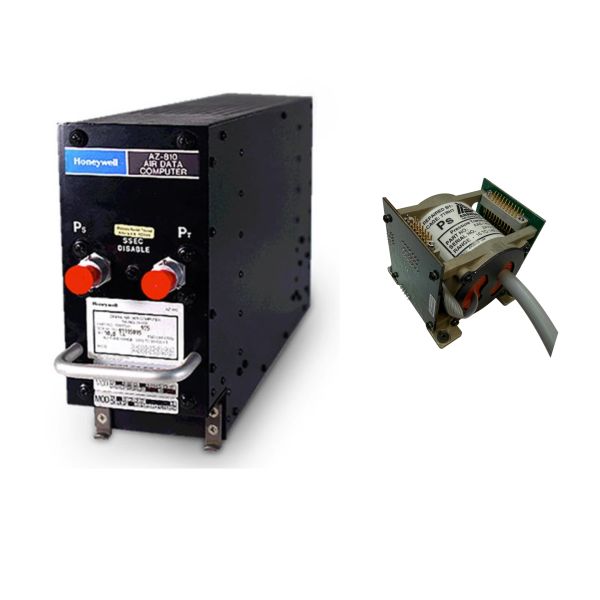

The Air Data Computer Ps/Pt Pressure Converter is a Form, Fit, and Functional Replacement for the Honeywell Beryllium Copper Pressure Transducer. These modules sense pitot and static pressure and convert the information into a frequency-dependent signal, which is accepted by the frequency-to-digital circuitry within the air data computer.

The RPT Pressure Converter will operate properly in any Air Data Application which currently uses a Honeywell Pressure Transducer. The performance of the RPT Pressure Converter meets or exceeds the performance characteristics of the Honeywell Pressure Transducer.

Part Numbers Supported: 7000700-864, 906, -921,

-923, -932, -938, -940, -942, -951, -953, -959, -961, -964, -966, -967,

                                           -975, -976, -977, -984

Aircraft Supported:  ATR-42 / 72

Citation VII

Dash 8 -100 / 200 / 300

Fokker F-28

Gulfstream G-118 / G-IV

Jetstream 41
